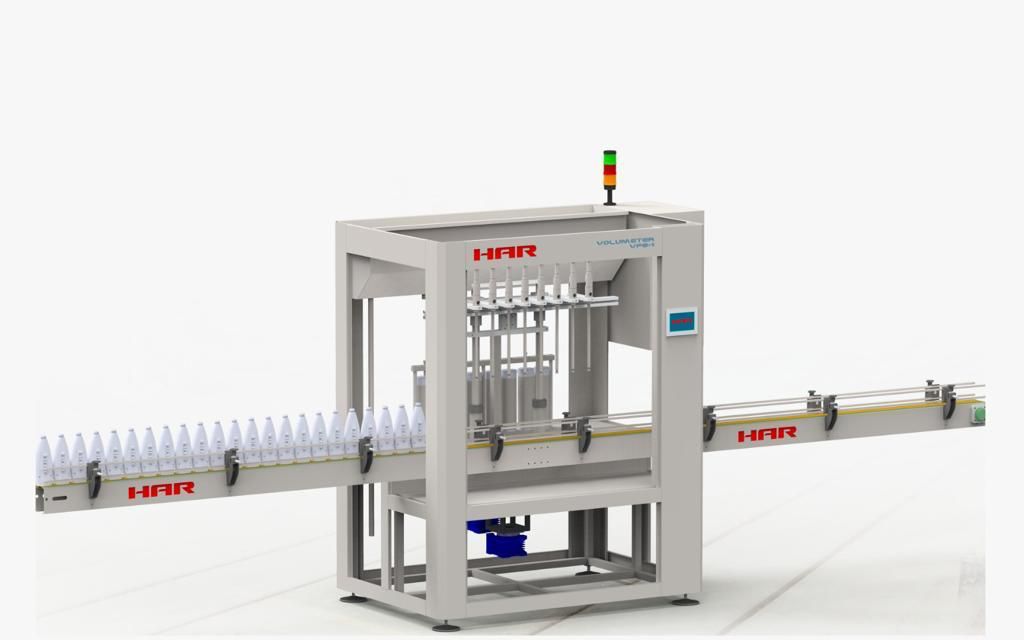

2.1. The filling machine will have the following features.
Number of packages to be filled at the same time: 8 pieces
Fillable grammage range: 150 – 1.150 ml (may vary optionally)
Length of nozzles (for bottom filling): 330mm
Stainless Quality to be Used: AISI 304 / Surfaces in contact with the product 316
Felt and o-ring material to be used: Nutring
Filling working system: Servo Motor, Volumetric
Nozzle operating system: Servo Motor
Pneumatic brands used: Gy.Pag, Pneumax, Jelpc
Sensor brands used: Sick, Banner, Bedok, Isıso, Wenglör
Brands of electronic materials used: Delta, GMT, Siemens, Telemecanique, Shneider
Hourly filling capacity at maximum grammage: 500 – 2,500 pieces/h.
Machine width (mm): 1550 mm
Machine length (mm) / conveyor belt: 1.650 mm / 6.000 mm
Machine height (mm): 2,000 mm
Automation control method: PLC and 7” color touch screen - with prescription
Energy consumption: 380v. 5 kw/h.
Air consumption: 200 lt/h.
2.2. There will be sensors on the conveyor at the entrance and exit of the filling machine. It will fill the packages by counting them and will not fill them in vain when the package supply is cut off.
2.3. The conveyor moving under the packaging may be stopped or slowed down during filling. In this way, deformation arising from friction under the packaging during filling will be prevented and energy savings will be achieved. At the same time, convenience will be provided to the personnel feeding the lids.
